LSLidar - M10 2D Lidar

Be the first to review this product

€257.48 €214.57

Advanced optic design and algorithms make M series LiDAR have excellent detection performances in extreme situations such as strong light, black and white objects, and high-reflection objects.

SKU

LS-M10

Details

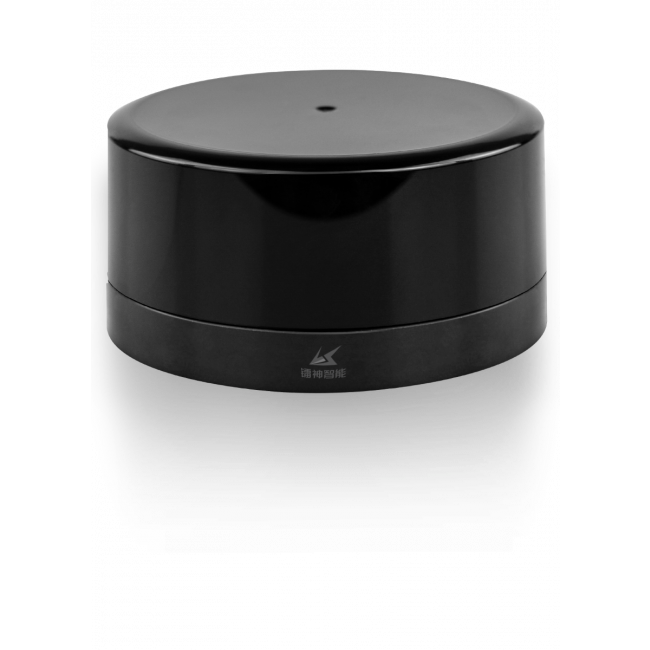

LSLidar - M10

Navigation & Obstacle Avoidance LiDAR

Using TOF methodology, provides a reliable 360° surrounding perception for robots.

The smart size is the strong customer benefits for system integration.

All-round Scanning

360º

Range

25m@70%

Eye Safety

Class 1

Accuracy

+- 3

Output Data

Distance, Angle

Anti-Glare

Indoor and outdoor applications

Smart Size

Only 80*40mm, suitable for all kinds of service robotics integration.

Cost-effective LiDAR with Outstanding

Advanced optic design and algorithms make M series LiDAR have excellent detection performances in extreme situations such as strong light, black and white objects, and high-reflection objects.

FOV	Scan Rate
360º	10Hz
Data Acquisition Rate	Resolution
10,000 pts/s	0.36º
Shock	Weight
500m/sec², Lasts 11ms	200g
Vibration	Working Temperature
5Hz-2000Hz, 3G rms	-20ºC ~ 60ºC
